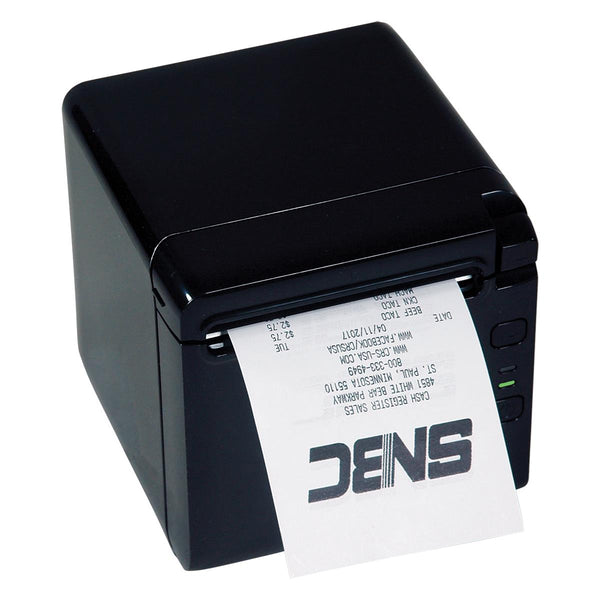

SNBC BTP-S80 Thermal Printer - Black Cabinet (USB/Serial/Ethernet)

DT Technologies

Sale price $229.00 Regular price $235.00

SNBC BTP-S80 Thermal Printer - Black Cabinet (USB/Serial/Ethernet)

Top or Front Paper Exit Thermal Receipt Printer

Setting the standard for value-class thermal receipt printers, SNBC delivers an affordable POS printer that provides all popular connection interfaces, including USB, Serial and Ethernet, along with superior speed and reliability.



• Triple Interface Standard – USB+Serial+Ethernet
• Fast 250mm per Second Print Speed
• Compact Space-Saving Design
• Top or Front Paper Exit
• Includes Serial and USB Cables and Power Supply
• Stores/Prints Coupon and Logo Images
• Compatible with Popular POS Software Applications





Max Print Speed - Mono  250mm per Second
Max Print Speed - Gray Scale: 150mm per Second
Max Print Speed - Two-Color: 120mm per Second
Printing Method: Direct Thermal
Resolution: 203 DPI x 180 DPI

Characters Per Line -      Font A:
                                          Font B:

53 (80mm) / 38 (58mm)
71 (80mm) / 51 (58mm)
Characters Size - Font A:
                                  Font B:
12 x 24
9 x 17
Paper Roll Type - Width:
Maximum Diameter:
Paper Thickness:
82.5 / 80 / 57.5mm ± 0.5mm
83mm
0.06 ~ 0.1mm
Auto Paper Cutting Method: Auto-Cutter with Selectable Full or Partial Cut
Reliability - MTBF:
                     MCBF:
      Printhead Life:
             Cutter Life:
360,000 Hours
70,000,000 Lines
150,000,000 Characters
2,000,000 Cuts
Character Set - Alphanumeric:
International:
Code Pages:
95
14
128 x 68
Bar Code - 1D:
                    2D:
UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF
PDF417 / QR Code / MaxiCode
Interpreter: ESC/POS
Interface: USB+Serial+Ethernet / USB+Serial / USB+Parallel /  USB Only
Drivers -                              32 bit:
                                             64 Bit:
                                32 and 64 bit:
                                              Other:
        Software Development Kit:
Windows XP Prof. / XP Home / 2000 Server / 2000 Professional / POSReady 2009
Windows Server 2012 / Windows XP
Windows 10 / Windows 8.1 / Windows 8 /  Windows 7
Linux / OPOS / BYJavaPOS Windows / BYJavaPOS Linux
iOS / Android
Drawer Port: Up to 2 Drawers (+24VDC) / Drawer Compulsion
Data Buffer - Rec. Buffer RAM:
RAM Bitmap:
Flash Bitmap:
64 KB
128KB
512KB
Power Supply: AC 100 ~ 240 V, 50/60 Hz Adapter Included
Current/Power Usage: 2.0A / 60W
Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
Operating Humidity: 20% ~ 90% RH (Non-Condensing)
Dimensions  5"W x 5-1/4"H x 5"D
Shipping Weight: 4 lbs. (Unit) / 16.75 lbs. (Master Carton of 6)
Safety and EMI: FCC / UL
