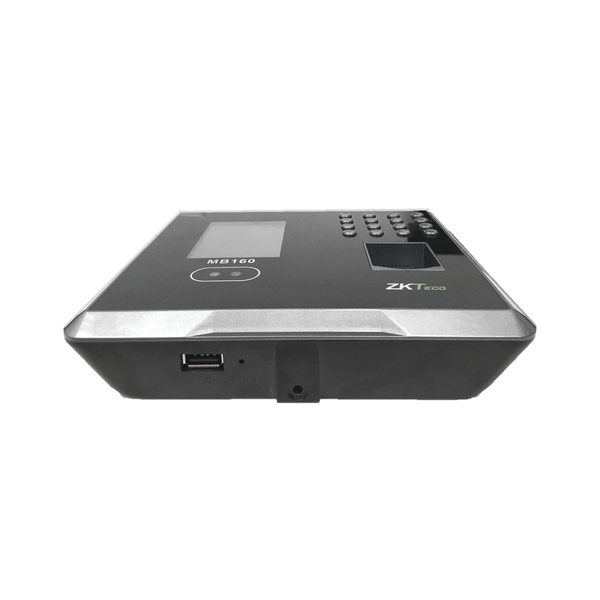

WiFi Facial Recognition Terminal with Fingerprint Reader, for 1500 Faces and 2000 Fingerprint Templates MB-160W ZKTECO
Common Application:
- Time management and employee assistance.
- Access Control.
Functions:
Time & Assistance:
- ADMS Ready. The MB160 is ready to work with BIO-TIME-7, allowing the easy management of employees in remote sites in a centralized way.
- Verification mode through the face, fingerprint or both combined.
- Face enrolling directly on the device.
- Check in and check out records
- Fingerprint enrolling directly on the device or remotely via software (Requires ZK4000 o ZK7500).
Access Control:
-
Relay output.
-
Alarm output to generate programmed audible alarms.
-
Request to exit button input.
Compatible with EPSON and RONGTA serial printers
The ticket format cannot be modified.
It possible to choose which elements will be printed.
- Company name
- User ID
- Name
- Punch Time
- Punch State
- Device ID
- Print Time
- Verification Mode
Technical Specifications:
|
Face Capacity |
1,500 |
|
Fingerprint Capacity |
2,000 |
|
ID Card Capacity (optional) |
2,000 |
|
Record Capacity |
100,000 |
|
Display |
2.8-inch TFT Screen |
|
Communication |
TCP/IP, ADMS USB-Host, Wi-Fi (Optional) |
|
Standard Functions |
SMS, DTS, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, 12V Output, RS232 Printer (Optional Cable) |
|
Optional Functions |
ID / MF Cards, Work Code |
|

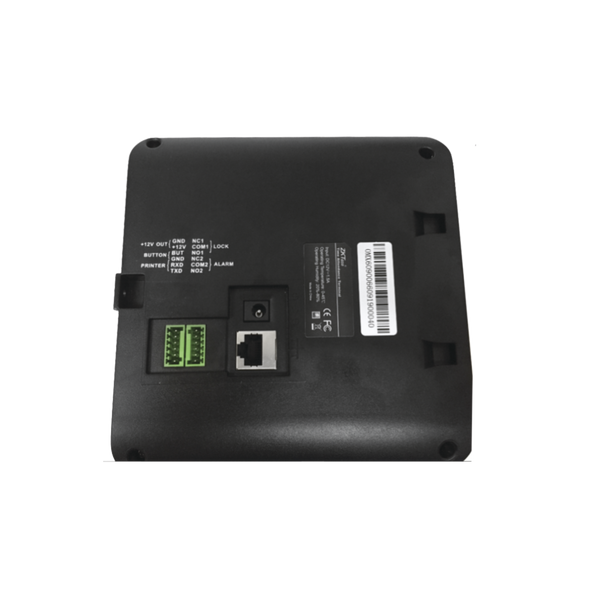

Interface for Access Control |
3rd Party Electric Lock, Exit Button, Alarm |
|
Power Supply |
DC 12V 1.5A |
|
Verification Speed |
≤ 1Sec. |
|
Operating Temp. |
0°c - 45°c |
|
Operating Humidity |
20% - 80% |
|
Dimension |
167.5 x 148.8 x 32.2 mm (Length*Width*Thickness) |
Software Compatibility:
ZKAccess 3.5 (free)
The software can manage Access control and Time & Attendance at the same time, get a basic report for Check-In and Check-Out (For Time & Attendance Terminals up to 1000 employees).ZKTimeNET 3.0 (Requires License)
- Real-Time monitoring for the employees (Check-In, Check-Out or Not registered yet).
- More than 15 different reports (Transactions, Attendance, Late arrival, Early out, Absence, etc).
- Management for different Shifts, Breaks, etc.
- ZKTN3S (500 employees and 50 Terminals)
- ZKTN3P (1000 employees and 50 Terminals)
- ZKTN3A (2000 employees and 50 Terminals)
