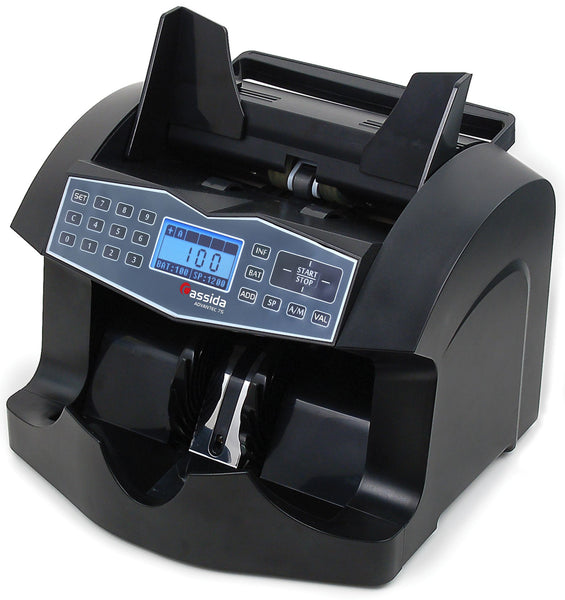

Cassida Advantec75 UV MG Heavy-Duty Currency Counter
Take the Next Step in Currency Counters
The Advantec75 is breakthrough in currency counters. Built to standards usually reserved for aircraft components, it combines speed, precision, and versatility into one heavy-duty machine. Packed with cutting-edge features and tested in ultra-demanding counting environments, the Advantec 75 is ready for any mission.
Next-level communication capabilities

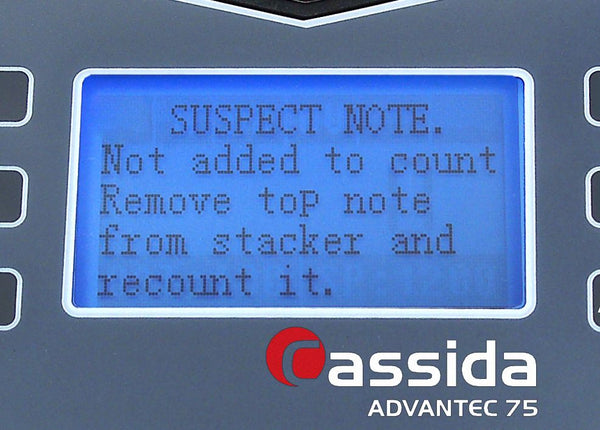

In an industry first, the Advantec75 displays both the cause and the remedy for counting errors in easy-to-understand language on its large liquid crystal display. Of course, it also keeps the user informed of key count information and operating mode status.
A full suite of counting and detection modes
The Advantec75 offers adding, counting, batching, and adding + batching modes, making it the perfect choice when all-around performance is a requirement. Infrared (Basic and U models) and ultraviolet (U model) sensors are able to spot a wide range of bill discrepancies, including half, double, and chain notes, note-width differences, and sophisticated counterfeits.

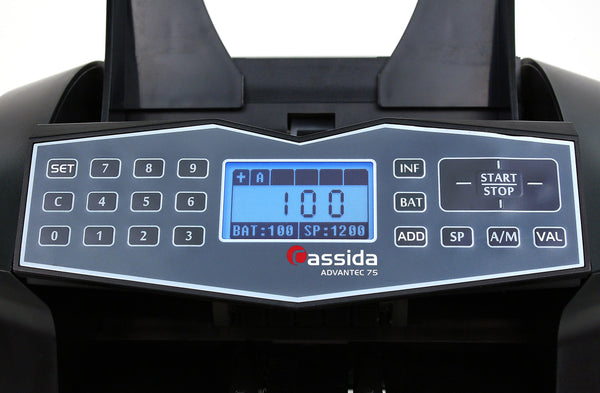

Advanced user interface
An intuitive keypad coupled with an easy-to-read display that provides comprehensive information makes operating the Advantec75 easy. User preferences such as screen brightness and keypad sounds can be quickly customized. The Advantec75 CAD also sleeps with one eye open, instantly switching from energy-saving sleep mode to counting when bills are loaded in the hopper.
Fast, accurate, and reliable
The Advantec75 counts up to 1,500 bills per minute without sacrificing accuracy, reliability, or crucial detection capabilities. Counting speeds of 800, 1000, and 1200 are also available to ensure smooth counting of both worn and new bills.
Four counting speeds accommodate both worn and new bills
Operating modes: Count, add, and batch modes; add + batch mode
Large, top-loading hopper holds 425 bills (new)
Rugged, heavy-duty construction
Innovative onscreen instructions help users remedy common errors
Switches to energy-saving sleep mode when not in use
One-Eye-Open? feature switches unit from sleep to counting when bills are loaded
Batch size ranges from 0-999
Add mode ranges from 0 ? 999,999; totals all counts;
Auto/Manual start option
Operating modes: count, add, batch, add+batch
Error detection: half, double, chain, note width
Counterfeit detection: UV (U model only); UV/MG (U and UM models)
Counting Speeds: 800, 1000, 1200, 1500 bill/minute
Hopper capacity: 425 bills (new)
Stacker capacity: 350 bills (new)
Countable bill size: 4.3" x 2" to 7.3" x 3.5 (109mm x 51mm to 185mm x 89mm)
Batch size: 0-999 bills
Screen type: LCD
Bill transport system:Friction roller
Dimensions, unit:10.6?w x 9.8?d x 9.0h (270mm x 250mm x 230mm)
Dimensions, box: 10.6"w x 9.8"d x 9.0"h (330mm x 330mm x 305mm)
Weight, unit: 12.3 lb (5.6 kg)
Weight, box: 14.8 lb (6.7 kg)
Power input:110-240 VAC 50-60Hz
Power consumption: <40 watts
Warranty: 1-year parts and labor warranty
Advantec75 U (ultraviolet) 8 57287 00233 9
