3nStar AIO POS System Intel Celeron J6412 8GB RAM, 240GB SSD, Capacitive, Wi-Fi, BT, Windows 11 IOT Enterprise Entry
PTE0605W-8-240W11

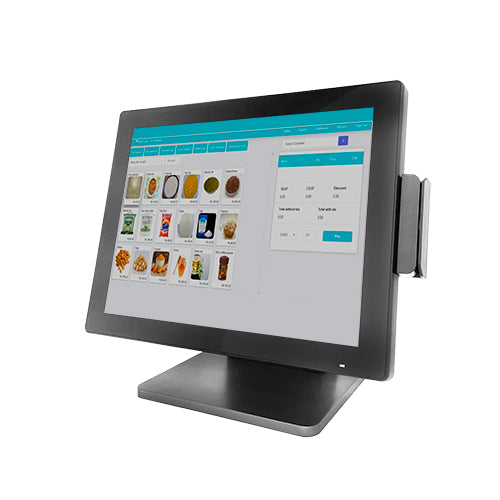

The PTE0605 Point of Sale terminal features an aluminum housing, a fan-free motherboard customized for POS application, and a solid-state drive for enterprise-level performance and reliability in harsh retail and food service environments.
The industrial-grade quality ensures a long lifespan, stable working, and significant energy savings. The elegant and robust base with magnetic cover manages cords to be well protected and organized.
Features:
- 15″ Capacitive Multitouch Touch Screen: Provides a brighter image and a more sensitive touch
- Industrial Motherboard with Intel J6412: high performance for demanding applications
- 8GB RAM expandable up to 16GB
- Solid Stage 240GB Hard Drive expandable to 1TB provides best performance, reliability and durability
- Dual Band 802.11ac, a/b/g, n Wi-Fi: Connect effortlessly without wires
- Bluetooth 4.0: Easy pairing with all your devices (BT Scanners, Mobile Printers, keyboard)
- Rich I/O: 6 USB, 3 RS232, 1 VGA, 1 Cash Drawer Port, 1 Audio Combo

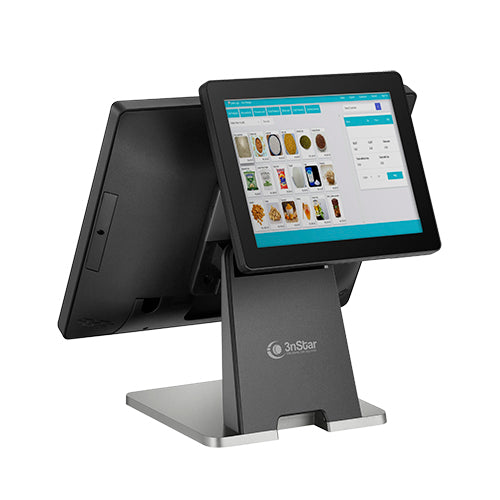

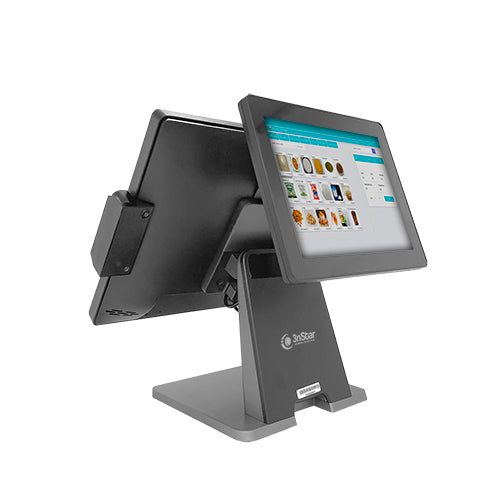

- Optional Customer Display 9.7″ LCD for better customer interaction
- Support PXE (Preboot Execution Environment) that allows to be configured and booted remotely by an administrator
- Compatible with most versions of Windows and Linux
| Construction Material |
Aluminum Die-casting Alloy Housing & Base
|
|---|---|
| Color |
Frosted black Chassis & Sliver Base
|
| Size and Weight |
Height: 330mm Width: 290mm Depth: 210mm Weight: 4.6KG
|
| Processor |
Intel Celeron J6412
|
| Memory |
8GB expandable to 16GB
|
| Storage |
Solid Stage 240GB Hard Drive expandable to 1TB
|
| Operating System |
(Optional) Windows 7,8,10 and Linux
|
| Wi-Fi |
Double Band 802.11ac, a/b/g, n
|
| Bluetooth |
4.0
|
| Ethernet |
10/100/1000M RJ45
|
| USB |
6 Ports
|
| RS232 |
3 RS232
|
| Parallel |
None
|
| Keyboard |
None
|
| VGA Output |
1 Port
|
| Audio Output |
None
|
| Audio Input |
Microphone (Combo 3.5")
|
| Touchscreen Type |
10 Points Capacitive
|
| Transmittance |
>95%
|
| Touch Times |
>50,000,000
|
| Surface Hardness |
Anti-glare, Hard-Coating(3H)
|
| Resolution |
1024 * 768
|
| Pixel |
0.297(V) × 0.297(H)mm
|
| Brightness(Typical) |
350 cd/m²
|
| Contrast Ratio |
1000:1(Typical)/700:1(Min)
|
| Response Time |
30ms (Typical)
|
| Viewing Angle |
|
| Color Support |
16.2M
|
| Horizontal Frequency |
|
| Vertical Frequency |
|
| Life Time |
>50,000 hours
|
| Adapter Output |
DC 12V, 5A
|
| Adapter Input |
AC 100-240V, 50-60HZ
|
| Certifications |
|
| Operating Temperature |
0℃ to 35℃
|
| Storage Temperature |
-15℃ to 60℃
|
| Humidity |
20% to 85% RH non-condensing
|
