3nStar P7 All-in One Point of Sale Station N97, 8GB RAM, 240GB SSD, Capacitive, Wi-Fi, BT, Windows 11 IOT Enterprise

3nStar P7 All-in One Point of Sale Station N97, 8GB RAM, 240GB SSD, Capacitive,  Wi-Fi, BT, Windows 11 IOT Enterprise

P715-10W-8240W11

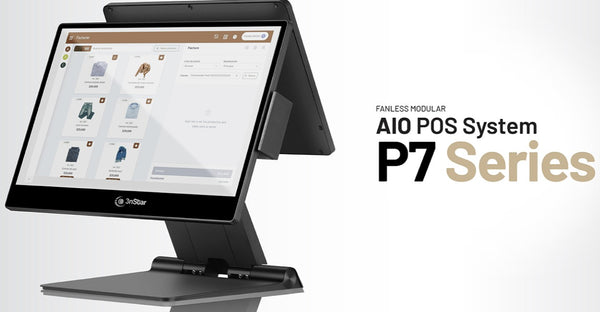

The 3nStar P7 Series is a modular all-in-one (AIO) POS terminal with an ultra-sleek, compact design. It features a swappable system box for easy maintenance, modular peripherals for quick setup, and a true-flat projected capacitive (PCAP) multi-touch display.

The all-new P7 is designed with your business in mind, offering modular configurations that adapt to your needs.

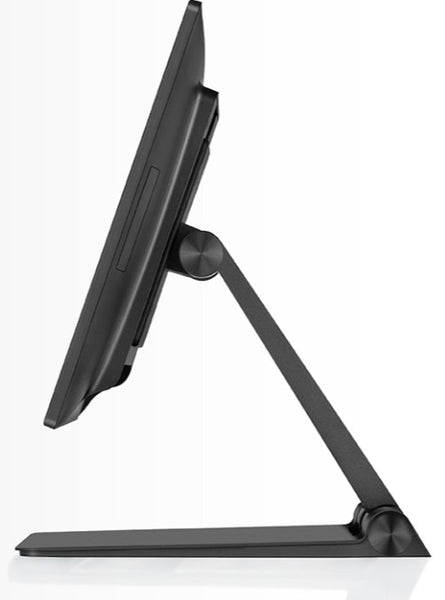

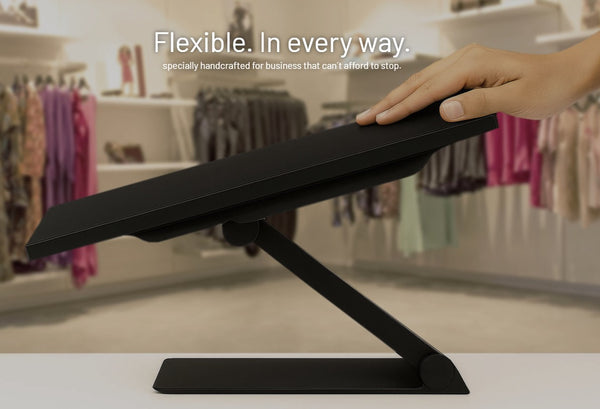

Flexibility: From desktop to wall mount, the P7 adapts to your space. Whether it’s a traditional point-of-sale setup or a mounted display for customer interaction, the P7 gives your business full mounting flexibility

Modular Design for easy upgrade and Maintenance
• 15", Capacitive Multitouch Touch Screen: Provides a brighter image and a more sensitive touch.
• Industrial Fanless Motherboard with Intel N97, Stable, and reliable.
• 8GB RAM expandable to 32GB
• Solid Stage 250GB Hard Drive expandable to 1TB provides the best performance, reliability, and durability.

Dual Band 802.11ac, a/b/g, n Wi-Fi and BT

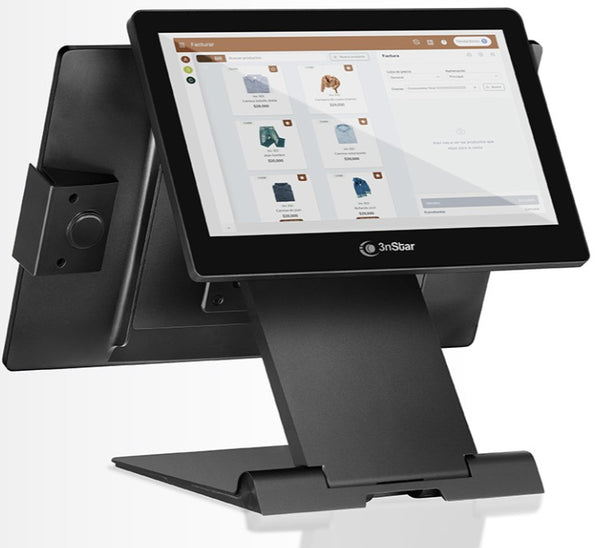

Optional Customer Display 9.7" and 11.6” LCD for better customer interaction

Support PXE (Preboot Execution Environment) that allows it to be configured and booted remotely by an administrator

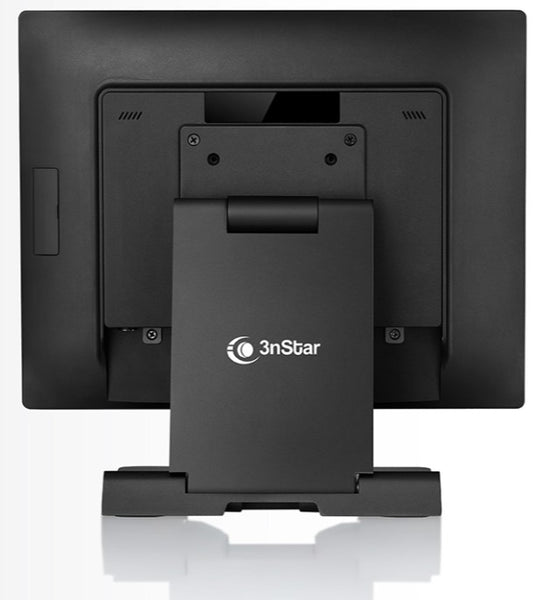

Revolutionary Rear Modular Design: The P7’s rear modular base is built for speed, service, and simplicity. Have a hardware issue? Just flip, unscrew, and lift, no need to disassemble the full unit. Want to upgrade your processor or troubleshoot an issue? No problem, swap the processor module in seconds. The modular design ensures fast access and uninterrupted business anytime!

CPU: Intel® N97

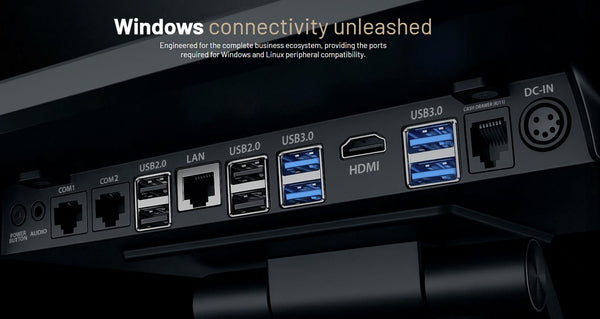

Connectivity
Wi-Fi Double Band 802.11ac, a/b/g, n (Optional)
Bluetooth
Ethernet 10/100/1000M RJ45
USB 4 USB 3.0 and 4 USB 2.0
Serial RS232 3 RJ50 Ports
Cash Drawer 1 RJ12
Video Output 1 HDMI Port

Touch Panel
Touchscreen type: Capacitive 10 points
Transmittance >95%
Touch times More than 50,000,000

Monitor: 15"
Resolution 1024 * 768
Brightness (Typical) 350 cd/m²
Response Time 30ms
Viewing Angle 170º/170º
Color Support 16,2M
Lifetime More than 50,000 Hours

Electrical
Adapter Output N97 DC 12V, 5A
Adapter Input Adapter AC 100-240V, 50-60Hz

Environmental
Operating Temperature 0℃ ~ 40℃
Storage Temperature -20℃ ~ 70℃
Humidity 10% ~ 90% (without condensation)

Certifications and Warranty
Certifications CE, ROHS, FCC, CCC
Warranty 1 year
