| Printing Technology: |
Direct Thermal |
| Resolution: |
|
| Print Speed (maximum): |
|
| Print Width (maximum): |
72 mm |
| Media type: |
Thermal receipt paper |
| Media Width (min to max): |
59 - 80 mm (+/- 0.5 mm) |
| Media Thickness (min to max): |
53 to 85 μm |
| Roll Size (max), Core Size: |
83 mm outside diameter |
| Media Sensor: |
Paper end |

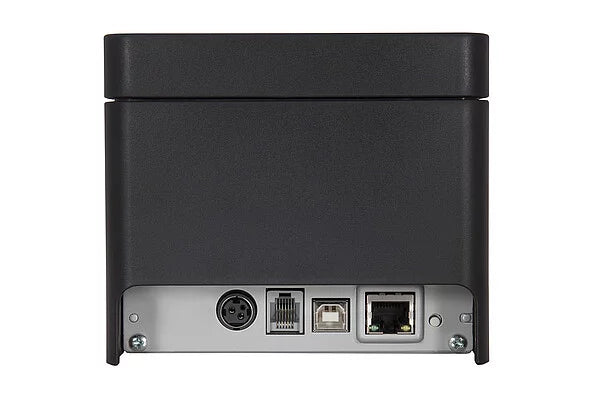

| Main Interface: |
Dual interfaces: USB + LAN or USB + Serial |
| Case: |

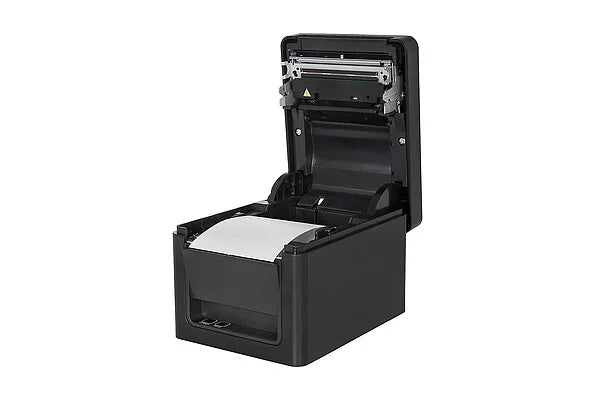

Stylish flat-top case and top loading |

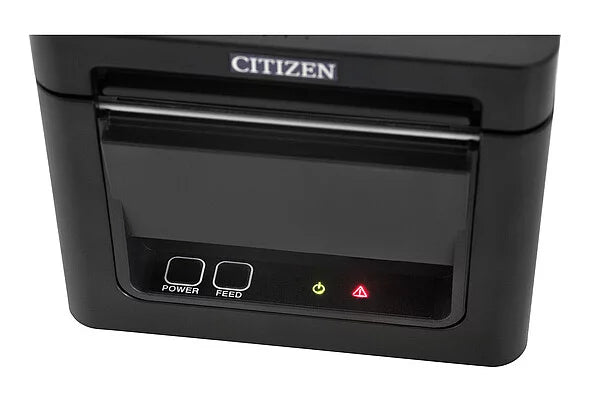

| Control panel: |
2 buttons, 2 LEDs |
| Flash (Non-Volatile Memory): |
8MB |
| Drivers and software: |
Free-of-charge from website, including support for various platforms |
| Emulations (Languages): |
|
| Barcodes: |
- Code3of9
- UPC-A
- UPC-E
- EAN-13 (JAN-13)
- EAN-8(JAN-8),
- Codabar, ITF
- CODE39
- CODE93
- CODE128
- CODABAR(NW-7)
- PDF 417
- QR Code
- GS1-Databar
- Composit Symb
|
| Size (W x D x H) and Weight: |
- 125 x 170 x 108 mm. 1.26 Kg
|
| Warranty: |
3 years |
| Cutter: |
Guillotine type, full and partial |
| Drawer kick-out: |
CDK / DK connector, RJ12, 2 drawer control |
| Power supply: |
100 – 240V, 50-60 Hz, external power supply (supplied) or 24V DC |
| Reliability: |
200 Million pulses or 150 Km, 2 million cuts |
| Operation environment: |
+5 to +45°C, 10% - 90% RH, non condensing |
| Storage environment: |
-20 to +60°C, 10% - 90% RH, non condensing |
| EMC and safety standards: |
|
| Code pages: |
15 codepages, 17 country tables |
