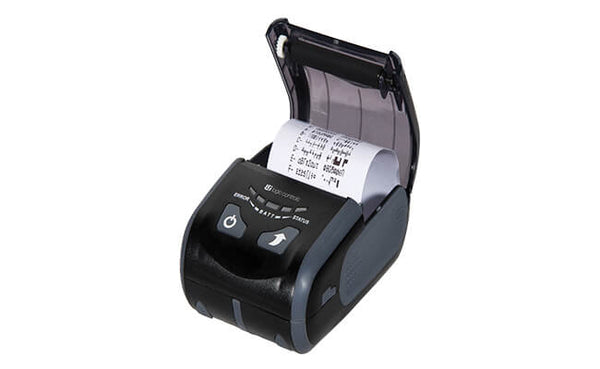

Bematech Logic Controls LR200M Portable Printer Wi-Fi Bluetooth USB

Description

LR200M portable printer optimizes the mobile checkout process and helps accelerate business at the Point of Sale. The printer is equipped with both Bluetooth and Wi-Fi interface, enabling it to work with POS applications designed for either wireless communications.

Main Features:

• Mini size with rubber protection
• Non-slip design
• Power indication light
• Support USB, power adapter or mobile power charging
• Standby mode to save power
• Secure belt strap included

Specifications

MECHANICAL

Weight: 3.4 lbs (1.5 kg)
Dimension (WxHxD): 5.7in x 7.7in x 5.8in (14.4cm x 19.5cm x 14.7cm)

PRINTING

Method: Thermal line printing
Resolution: 180x180dpi (7 dots/mm)
Paper width:  79.5 to .5mm
Printing width: 2.8in (7.1cm)
Character font:

• ASCII Font A: 12×24
• ASCII Font A: 9×24

Printer density:  512 dots/line
Printing speed: 250 mm/s
NV Bitmap Flash:  64Kb
Receipt buffer: 8Kb

LIFE SPAN

Printer Head Service Lifetime: 15,000,000 lines (100Km)
Auto-Cutter: 1,000,000 cuts
MCBF: 60,000,000 lines

COMMUNICATION INTERFACES

LR2000M: Wi-Fi, USB, BT

ENVIRONMENTAL

Operating temperature: 32°F to 122° (0°C to 50°C)
Operating humidity: 10 to 90% RH (non condensing)

CONNECTORS

USB: Standard USB Type B
Serial:  DB9
Ethernet: RJ45
Cash drawer: RJ11
Power:  3-pin with latch

ELECTRICAL

Power Adapter Input: AC100-240V, 50/60Hz
Power Adapter Output: DC 24V, 2.5A
