Panasonic Attune MICROPHONE OR SPEAKER WX-CS560

Panasonic Attune II

Sale price $99.00 Regular price $129.00

Panasonic ATTUNE MICROPHONE OR SPEAKER WX-CS560 WX-C551



Product Description

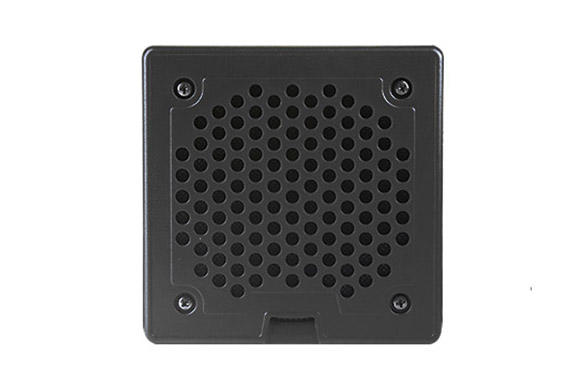

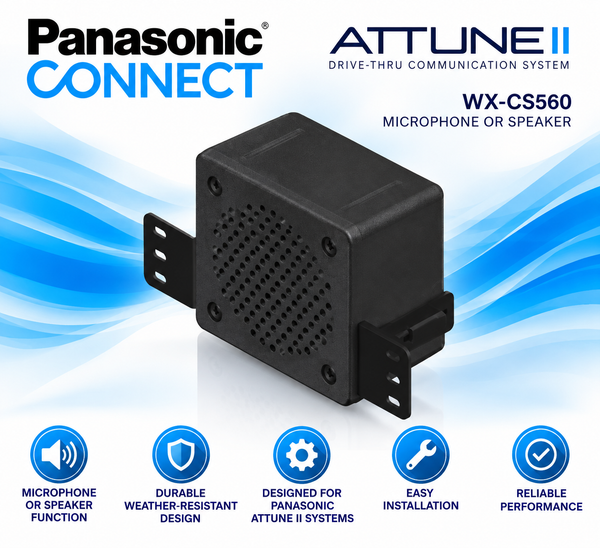

Panasonic WX-CS560 Attune 2 Outdoor Speaker or Microphone. Two required per installation.

DOES NOT REQUIRE ACOUSTIC KIT FOR INSTALLATION

Works on all Attune Systems

OPERATING:

Operating temperature: 20 C to +50 C {-4 F to 122 F}



DIMENSIONS and MASS:

114 mm x 114 mm x 70 mm

{4-1/2 inches (W) x 4-1/2 inches (H) x 2-3/4 inches (D)}

(Excluding projections)

Weight: Approximately 1.0 kg {2.2 lbs.} (without bracket)

Approximately 1.2 kg {2.6 lbs.} (with brackets)



MISCELLANEOUS:

Input/Output: Stranded cables, connector is attached to the end.

Cables: Approximately 2700 mm {106-5/16 inches} two core shielded wire

Inner sheath color: Red: + / Black:  / Gray: GND

Connector: Euro type 3P connector

Finish: Plastic-molded, black



SPEAKER:

Sound pressure level: 90 dB (1 W, 1 m {3.28 feet}, Typical)

Impedance: 8 Ω

Frequency response: 250 Hz to 15000 Hz (10dB, Typical)

Power capacity: 5 W (RMS*1)



MICROPHONE:

Sensitivity: 52 dB (0 dB=1 V/Pa, 1 kHz, Typical)

Frequency response: 100 Hz - 6000 Hz (10 dB, Typical)



*1 Rated noise power specified by IEC60268-5:2003+A1:2007(E), International Electrotechnical
