SNBC POS Thermal Printer BTP-R180II USB+Serial+Ethernet

DT Technologies

Regular price $199.00

SNBC Printer BTP-R180II USB+Serial+Ethernet

Includes Standard USB, Serial and Ethernet Interfaces

Setting the standard for value-class thermal receipt printers, SNBC delivers an affordable POS printer that provides all popular connection interfaces, including USB, Serial and Ethernet, with state-of-the-art speed and best-in-class reliability.



• Triple Interface Standard – USB, Serial and Ethernet
• Fast 230mm/Second Print Speed

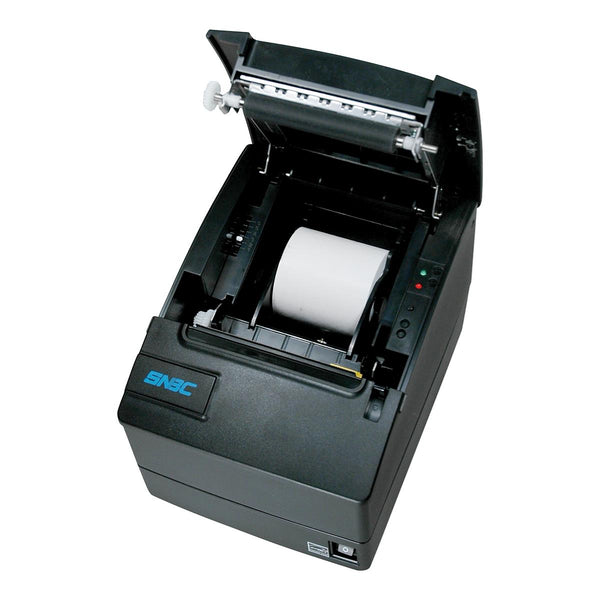

• Simple Drop-In Paper Loading
• Standard Auto Paper Cutter
• Includes Serial and USB Cables and Power Supply
• Compatible with Popular POS Software Applications



Max Print Speed - Mono  80mm: 230mm per Second
Max Print Speed - Gray Scale: 150mm per Second
Max Print Speed - Two-Color: 120mm per Second
Printing Method: Direct Thermal
Resolution: 180 DPI x 180 DPII

Characters Per Line - Font A:
                                          Font B:

42 (72mm) / 33 (58mm)
56 (72mm) / 45 (58mm))
Characters Size - Font A:
                                  Font B:
12 x 24
9 x 17
Paper Roll Type - Width:
Maximum Diameter:
Paper Thickness:
82 / 80 / 76 / 69 / 57mm ± 0.5mm
83mm
0.06mm ~ 0.08mm
Auto Paper Cutting Method: Auto-Cutter with Selectable Full or Partial Cut
Reliability - MTBF:
                     MCBF:
      Printhead Life:
             Cutter Life:
360,000 Hours
60,000,000 Lines
150 Km
1,500,000 Cuts
Character Set - Alphanumeric:
International:
Code pages:
95
13
56 Page
Bar Code - 1D:
                    2D:
UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF
PDF417 / QR Code / Maxicode / GS1
Interpreter: ESC/POS
Interface: Serial + USB + Ethernet

Drivers -                             32 bit:
                                           64 bit:
                                32 and 64 bit:
                                             Other:
       Software Development Kit:

Windows XP Prof. / XP Home / 2000 Server / 2000 Professional / POSReady 2009
Windows XP
Windows 8.1 / Windows 8 / Windows 7 / Server 2012 / Server 2008 / Server 2003 / Vista
Linux CUPS / OPOS / JavaPOS
iOS / Android

Drawer Port: Up to 2 Drawers (+24VDC) / Drawer Compulsion
Data Buffer - Rec. Buffer RAM:
RAM Bitmap:
Flash Bitmap:
64 KB
128KB
512KB
Power Supply: AC 100 ~ 240 V, 50/60 Hz Adapter Included
Current/Power Usage: 1.5A / 36W
Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
Operating Humidity: 20% ~ 90% RH (Non-Condensing)
Dimensions: 5-3/4"W x 5-9/16"H x 7-11/16"D
Shipping Weight: 7 lbs. (Each Unit) / 30.10 lbs. (Master Carton of 4)
Safety and EMI: FCC / RoHS
