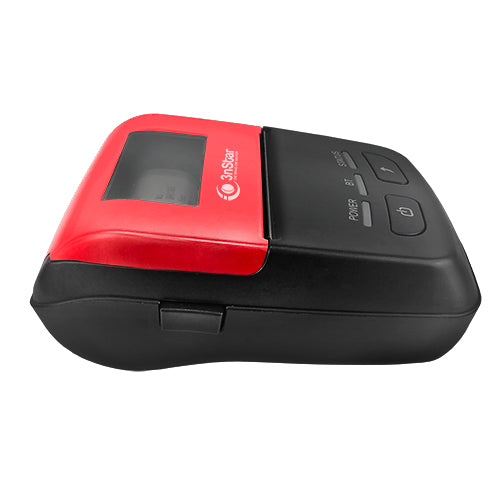

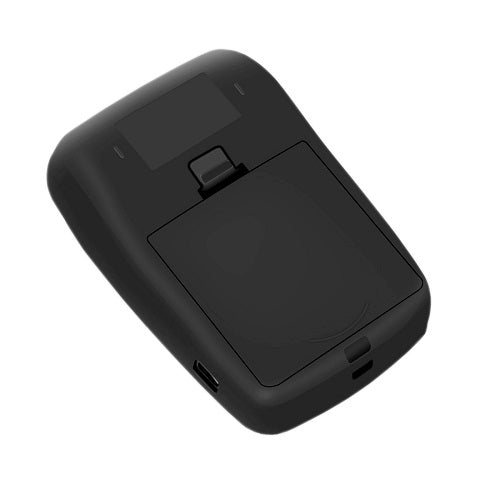

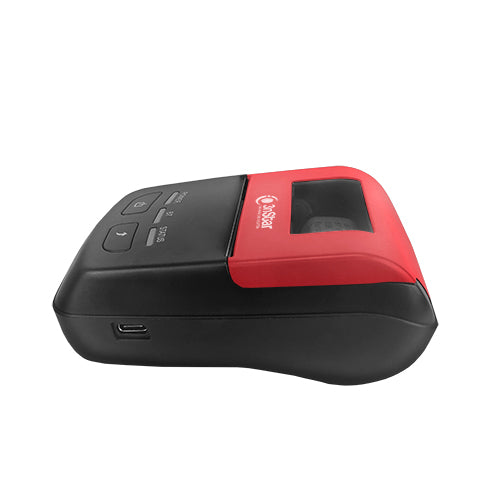

3nStar 58mm(2) Mobile Receipt and Label Printer Bluetooth (PPT200BT)
Ultra light, compact and portable
Rugged design, passed 1.5m drop test
Bluetooth 3.0/4.0 Dual Mode
Compatible with Android, Windows, WinCE
USB charging for your convenience
Print most 1D & 2D Barcode
Fast printing Speed up to 100mm/s
Long-lasting battery life (3 days stand-by)
Power Saving Sleep Mode
Simple drop-in media loading
OLED display
Cradle and MSR option
Compatible with Android, Windows, WinCE
USB charging for your convenience
Print most 1D & 2D Barcode
Fast printing Speed up to 100mm/s
Long-lasting battery life (3 days stand-by)
Power Saving Sleep Mode
Simple drop-in media loading
OLED display
Cradle and MSR option
Color | Black and Red |
---|---|
Dimensions | 126.9(L) x 84.4(W) x 50.6(H)mm |
Weight | 234g (Without paper roll) |
Printing Method | Direct Thermal Line Printing |
Resolution | 203dpi (8dots/mm) |
Printing Speed | 100mm/s |
Effective Printing Width | 48mm |
Interface | USB, Bluetooth 3.0/4.0 |
Barcode 1D | UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93 |
Barcode 2D | QR code, PDF417 |
Graphics | Support bitmap printing with different density and user defined bitmap printing |
Paper Type | Continuous paper, black mark paper, linerless label, gap Label |
Paper Width | 58mm |
Paper Thickness | 0.053~0.1mm |
Paper Roll Diameter | 40mm Max |
Paper Loading | Easy loading Mechanism |
Detection Sensors | Paper out detection, Cover open detection, Black mark detection, Gap detection |
Memory | 32Mb RAM, 64Mb Flash |
Led Power Indicator | Green |
Led Status Indicator | Blue |
Alphanumeric | ASCII 9x17,9x24, 12x24dots |
User-defined | Yes |
Code Page | 48 |
Emulation | ESC/POS |
Driver | Windows XP/Vista/Win7/Win8/Win10/ Linux |
SDK | WinCE, Win Mobile, Android |
Power Supply Input | AC 100V-240V |
Power Supply Output | DC 5V/2A |
Battery Type | 1400mAh/7.4V rechargeable Li-ion battery |
Power Saving | Sleep Mode |
Operating Temperature | -5 ~ 50 ?C |
Operating Humidity | 25% ~ 85 % RH |
Storage Temperature | -20 ~ 70 C |
Storage Humidity | 5% ~ 95% RH |
In the Box | USB Cable, Belt Clip, Paper Roll, Quick Start Guide, CD |
Options | Docking Cradle, MSR |
