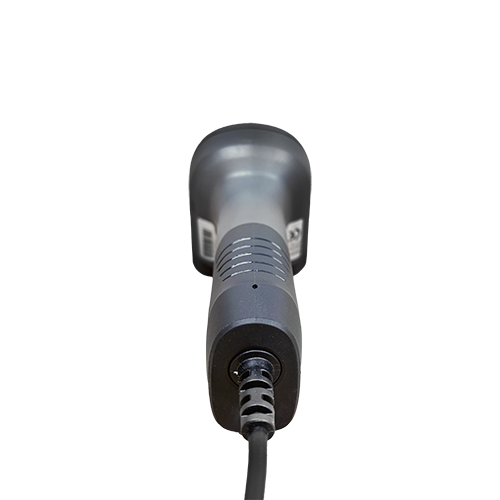

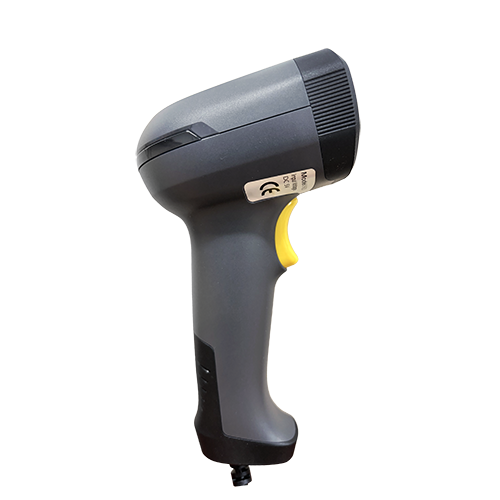

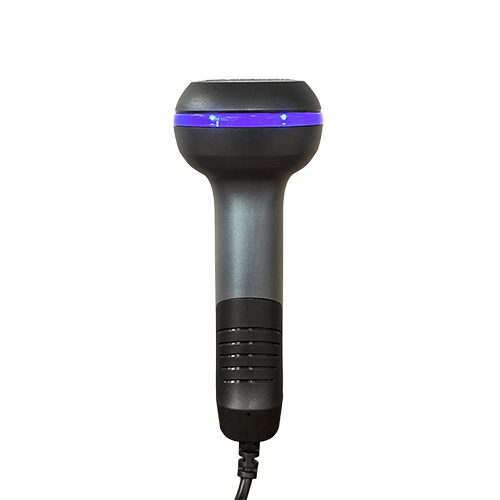

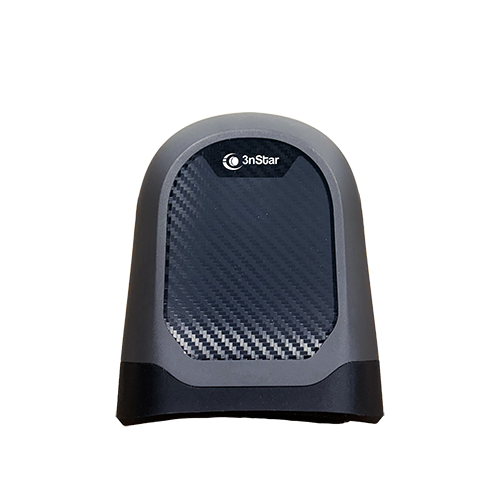

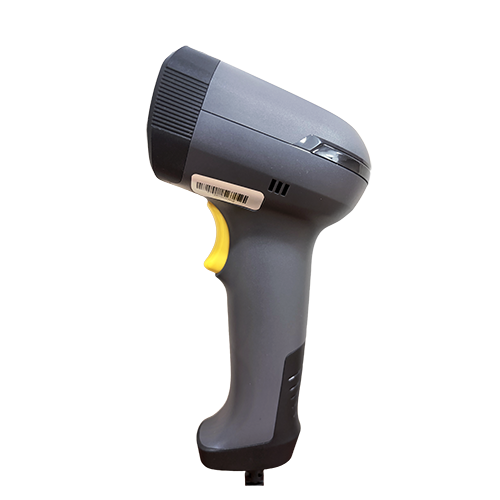

3nStar Light Industrial 2D Handheld Barcode Scanner SC460
The 3nStar SC460 is a high‑performance, light‑industrial 2D barcode scanner engineered for speed, reliability, and versatility across retail, logistics, and commercial environments. Equipped with a 1280 × 800 CMOS imaging sensor, it delivers exceptional decoding performance on both 1D and 2D barcodes, including damaged, low‑contrast, and mobile payment codes.
Built with a durable ABS + TPU + PC housing and 1.5‑meter drop resistance, the SC460 combines industrial toughness with ergonomic design for comfortable daily use. Its auto‑sense and manual scan modes allow seamless switching between hands‑free and handheld operation, making it ideal for high‑throughput counters and point‑of‑sale setups.
Key Features
-
High‑resolution 1280 × 800 imaging engine for fast and accurate barcode decoding
-
Wide field of view for intuitive scanning and improved efficiency
-
Reads from mobile screens — perfect for coupons, tickets, and digital wallets
-
Auto‑sense and manual scan modes for flexible operation
-
1.5m (5ft) drop resistance and 1 million‑scan button life
-
Compatible with Windows, Mac OS, Linux, Android, and iOS
Technical Specifications
-
Scan Rate: 60 frames per second
-
Depth of Field: 6cm – 36cm (13mil PCS90%)
-
Optical System: CMOS array sensor
-
Resolution: 3 mil
-

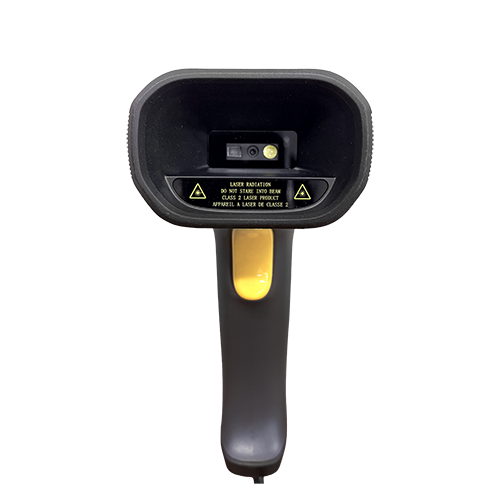

Light Source: White LED with red laser aimer
-
Field of View: Horizontal 40°, Vertical 30.4°
-
Interfaces: USB, RS‑232, USB Virtual COM
-
Voltage: 5V DC ±10%
-
Power Consumption: 280mA max
-
Operating Temperature: ‑10°C to 50°C (14°F to 122°F)
-
Humidity: 5% – 90% non‑condensing
Decode Capability
-
1D: Code39, Code128, UPC/EAN, GS1 DataBar, and more
-
2D: QR Code, Data Matrix, PDF417, Aztec, Micro QR

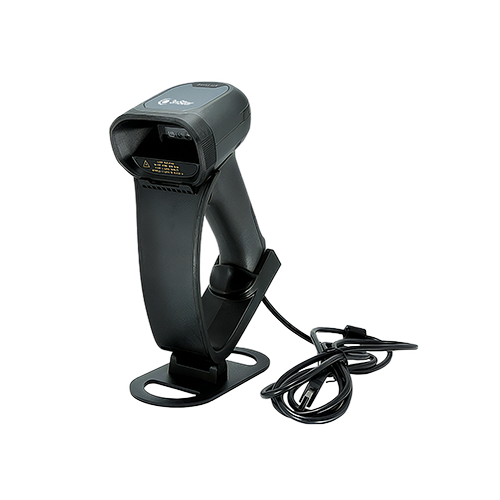

Package Contents
-
SC460 Scanner
-
1.8m straight cable
-

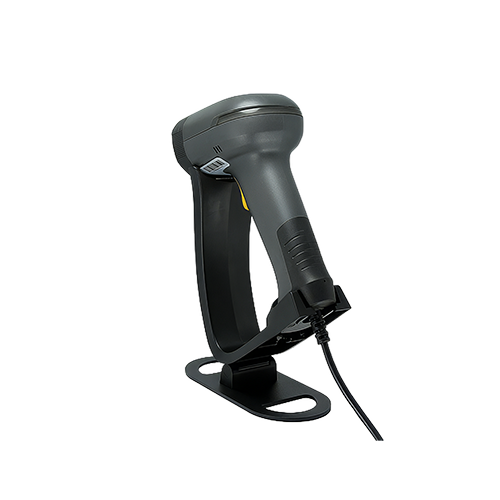

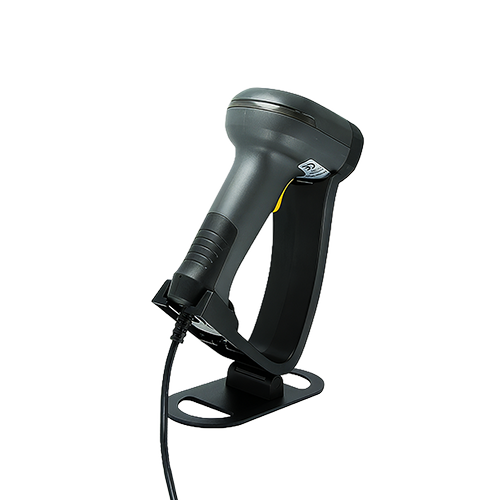

Stand
-
User manual
Certifications & Warranty
-
Electrical Safety: IEC60950
-
EMI/RFI Compliance: FCC 47 CFR Part 15
-
Warranty: 1 year
