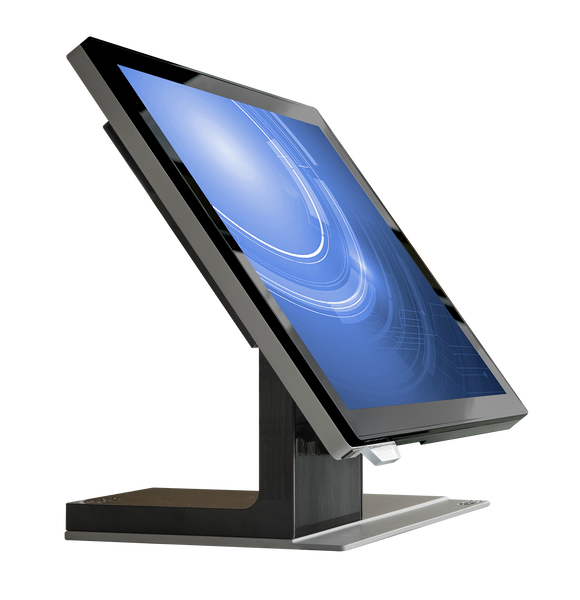

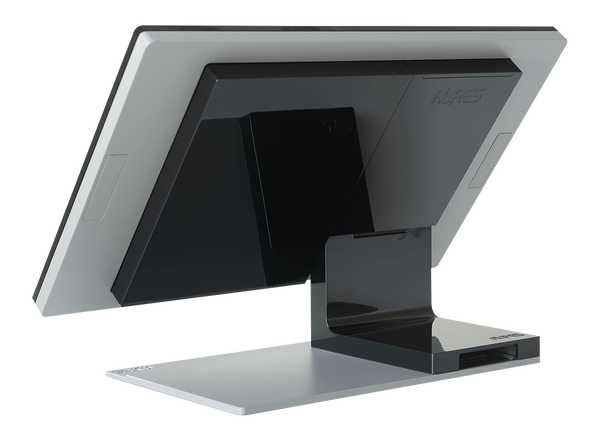

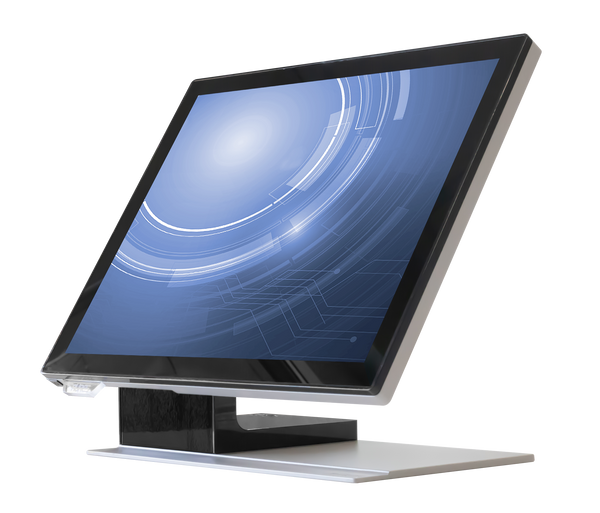

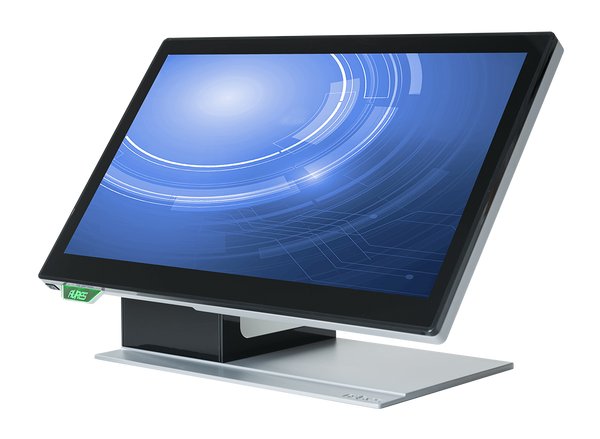

YUNO II – Next‑Generation All‑in‑One POS Terminal

The AURES YUNO II is a powerful, versatile, and stylish all‑in‑one POS system designed for demanding retail, hospitality, and service environments. Engineered with a fanless architecture, a robust aluminium structure, and a sleek, compact footprint, it delivers exceptional performance, durability, and long‑term reliability—making it a smart investment for any modern point‑of‑sale operation.

Built to adapt to multiple configurations, the YUNO II offers five Intel® processor options across 11th and 12th generation platforms, ensuring the right balance of speed, efficiency, and energy savings. Its projected capacitive multi‑touch display (10‑point PCAP) is available in 15" (4:3) or 15.6" Full HD (16:9) formats, both featuring a flat, zero‑bezel, scratch‑ and shock‑resistant panel ideal for high‑traffic environments.

Designed for flexibility, the YUNO II includes VESA mounting options, a tilting base (0–90°), discreet yet accessible I/O ports, and support for a wide range of peripherals. Its NVMe M.2 dual‑slot storage, expandable RAM, and dual LAN ports (depending on CPU) make it a future‑proof solution ready for any POS ecosystem.

Key Features

• Intel® processor

  • i5‑1145G7E

• Display format



  • 15.6" Full HD (1920 × 1080) wide format

  • 400 cd/m² brightness

  • Flat, zero‑bezel, 10‑point PCAP multi‑touch



• Durable construction

  • Aluminium heat‑dissipating structure

  • Polycarbonate cover

  • Dust‑ and splash‑proof front panel

  • MTBF (screen): 50,000 hours

• Flexible installation

  • Tilting base (0–90°)

  • Optional VESA brackets for wall or pole mounting

  • Detachable magnetic rear cover for easy maintenance

  • Slim, modern base with illuminated AURES logo (green/amber)

Technical Specifications

Performance & Storage

• RAM:

  • DDR4 8 GB standard (up to 32 GB) – 11th Gen

  • DDR5 8 GB standard (up to 16 GB) – 12th Gen

• Storage:

  • Slot 1: M.2 2280 PCIe 3.0 NVMe 256 GB (standard)

  • Slot 2: M.2 2280 PCIe 3.0 NVMe

  • SATA supported on 11th Gen CPUs

Display & Touch

• LCD: 15" or 15.6" Full HD

• Touch: Projected capacitive, 10‑point PCAP

• Brightness: 400 cd/m²

• Zero‑bezel, scratch‑ and shock‑resistant

Connectivity

• Serial: 2 × RJ50

• USB: 6 × USB 3.0, 2 × USB‑C (1 connected to CPU)

• LAN: 2 × Gigabit Ethernet (1 LAN on J6412 model)

• External Display: HDMI / DVI / VGA via USB‑C

• Cash Drawer: 24/12 V DC

• Audio: Internal speaker

• Power Supply: External 19 V DC

• Security: TPM 2.0 on all boards

• vPro: Available on i5 version

Environmental

• Operating Temperature: 0–35 °C

• Front Protection: Dust‑ and splash‑proof

• Certifications: CE/FCC Class B, UL, RCM

Dimensions & Weight

• 15" Model: 342.9 × 167.5 × 303.8 mm — 5.5 to 6.5 kg

• 15.6" Model: 382 × 170.5 × 276.1 mm — 6.5 to 7.5 kg

• Color: Black with grey base

Compatible Operating Systems

• Windows 10 IoT

• Windows 11 IoT LTSC 2024

• Linux

Optional Accessories (not included)

• Multi‑technology card reader (MSR, RFID HF/LF, NFC, BLE)

• Addimat or Dallas key readers

• 2D barcode scanners

• Fingerprint reader

• Customer display (20 × 2 characters)

• 10.1" secondary screen (touch or non‑touch)

• Wi‑Fi via USB BT/Wi‑Fi key

• VESA mounting brackets

• Anti‑glare touchscreen

• White cover option
