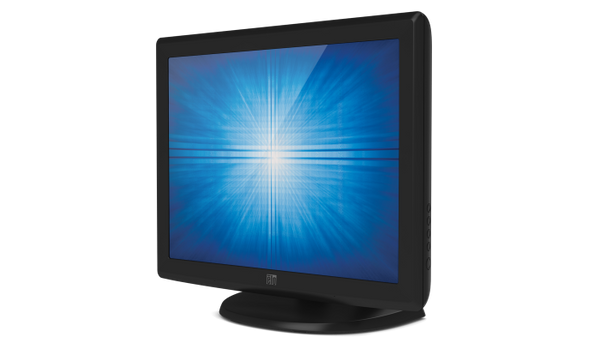

Elo 1517L 15-inch LCD (LED Backlight) Desktop, AccuTouch (Resistive) Single-touch, USB & RS232 Controller, Anti-glare, Bezel, VGA video interface, Black,
E523163
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.
Enclosure Color Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
15'' diagonal, Active matrix TFT LCD (LED)

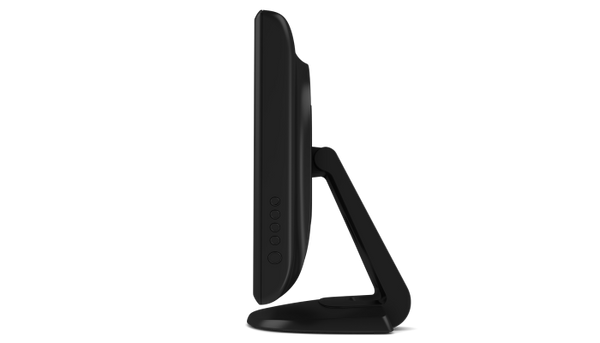

Monitor Thickness
1.7" / 43mm
Aspect Ratio
4:3
Active Area (mm)
8.98" x 11.97" / 228.10mm x 304.13mm
Resolution
1024x768 @ 60Hz, 75Hz
Other Supported Resolutions
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
Viewing Angle
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 300 nits
AccuTouch: 240 nits
IntelliTouch: 270 nits
IntelliTouch ZB: 270 nits
Response Time-total (typical)
23 msec
Contrast Ratio
800:1
Touch Interface
Serial (RS232) and USB
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Input Video Format
Analog VGA on Female DB-15 connector
Input Video Frequency
Horizontal: 31.5-60 kHz
Vertical: 56-75 Hz
Power Consumption (Typical)
Monitor Only
ON: 10.5W
SLEEP: 3.0W
OFF: 0.5W
Power Supply
Optional AC-DC power adapter sold for this monitor
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60Hz
Shipping Box Dimensions
19.2" x 9.1" x 19.1" / 487mm x 231mm x 485mm
Weight (Unpackaged)
9.48 lbs / 4.3 kg
Weight (Packaged)
16.09 lbs / 7.3 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Capped through-mount holes
Other Features
Security lock receptacle
Warranty
3-year
