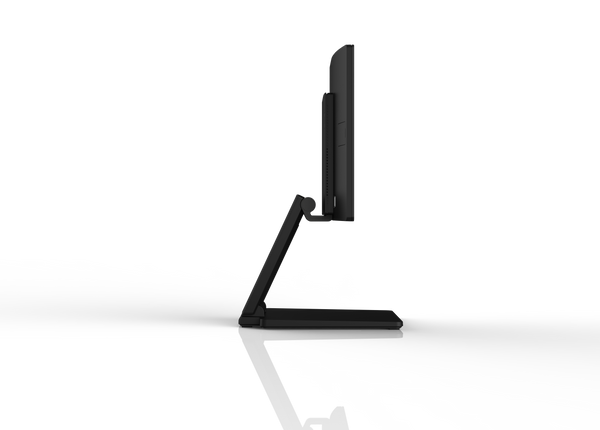

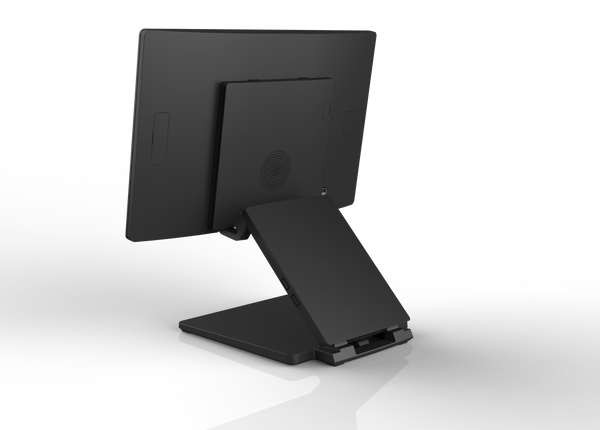

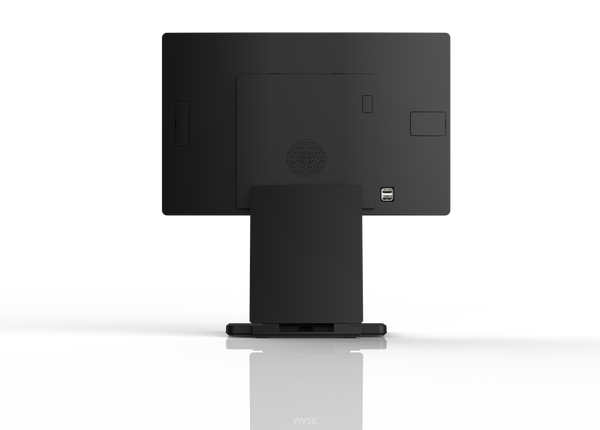

POSBANK MAZIC CX-1560 15.6” N97 8GB 128GB WINDOS 11
The MAZIC CX 1560 is a POS system optimized for customers in the restaurant and retail industries using the LCM module compared to the MAZIC. It is the most popular POS terminal with excellent performance using the 12th generation Intel CPU, a combination of a wide 15.6-inch economical display, and an interface with more than 10 I/O ports.
-
-
Processors[MAZIC CX-1560 AN]
Intel® Processor N97 6M Cache, up to 3.60 GHz
-
Chipset[MAZIC CX-1560 AN]
Intel® Alder Lake-N -
Memory[MAZIC CX-1560 AN]
4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 16GB)
-
Storage[MAZIC CX-1560 AN]
1. Form Factor
NVME M.2 2242-D2-M (No capacity limit.)
2. Mountable quantity: Up to 2 units can be installed.
* Factory Default : NVMe M.2 2242 128GB x 1
-
RAID-
-
Operating SystemsWindows 11
-
AudioHD Audio Codec
-
- Display
-
-
Type15.6" TFT LCD, LED Backlight
-
Resolution1920 x 1080
-
Brightness350 cd/m² (typ.)
-
View Angle (U/D/R/L)-
-
TouchscreenProjected Capacitive Touch, AF
-

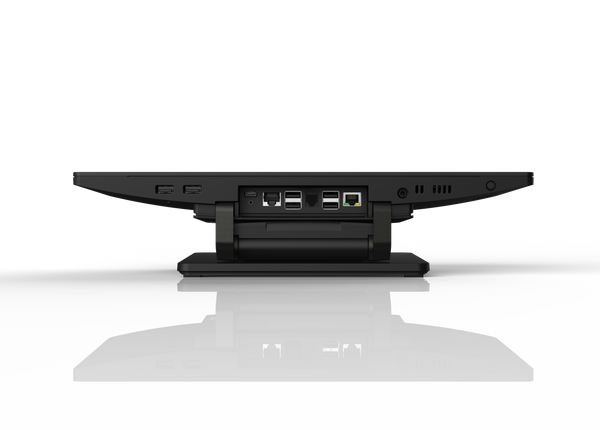

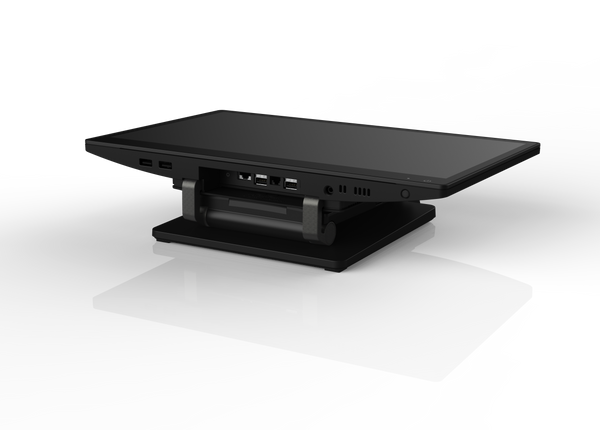

- Interface
-
-
DisplayDisplayport x 1 (MiniDP)
-
USB9 (Rear 9, USB 3.0 x 2,USB 2.0 x 6, USB C type x 1)
3 (Reserved for MSR, SCR, i-Button/Touch Controller) -
PS/2-
-
Serial3 (COM 1 reserved MSR/SCR, TX/RX only)
(COM2 reserved CDP, TX/RX only)
(COM3 RJ-45 , Full Signal) -
CashDrawer PortRJ-11 x 1 (Integrated circuit GPIO)
-
LANGigabit Ethernet x 1, RJ-45
-
AudioLine-out x 1
-
Power DC-INUSB C
-
MSRComply with ISO 7811, Support 1 & 2 & 3 Track
-
VGA-
-
HDMI-
-
SD Card Slot-
-
Extension Slot-
-
OTG-
-
- Power
-
-
Power SupplyAdapter 12V, 5A(C-Type Plug)
-
- Physical & Environmental
-
-
Operating Temperature0 ℃ ~ 60 ℃ at 10% to 90% Humidity
-
Storage Temperature-20 ℃ ~ 80 ℃ at 10% to 90% Humidity
-
Dimensions (W x H x D)368 x 395 x 230 (mm), 14.5 x 15.5 x 9.0 (in)
-
Packing Dimensions (W x H x D)485 x 325 x 150 (mm), 19 x 12.7 x 5.9 (in)
-
Net Weight5.0kg
-
Packing Weight5.5kg
-
CertificationKC, FCC, CE
-
ColorBlack
-
