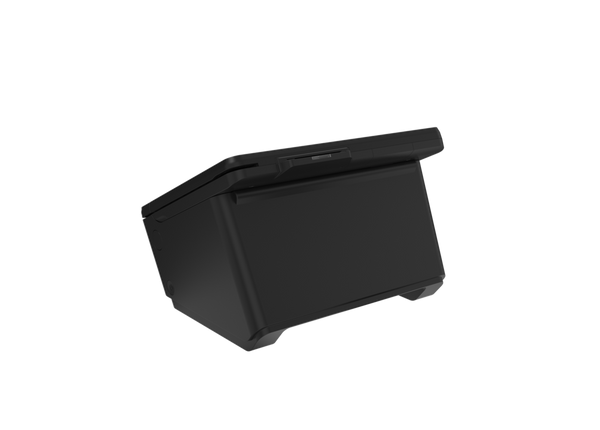

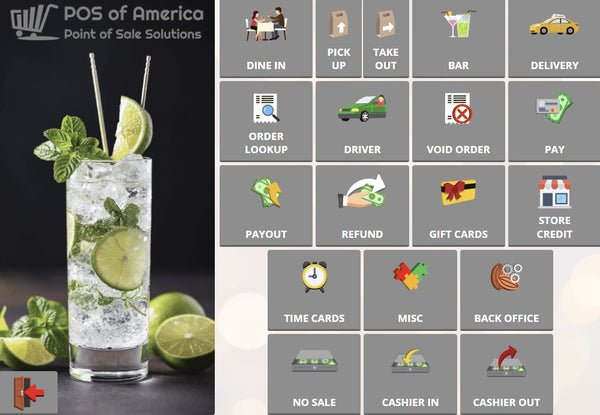

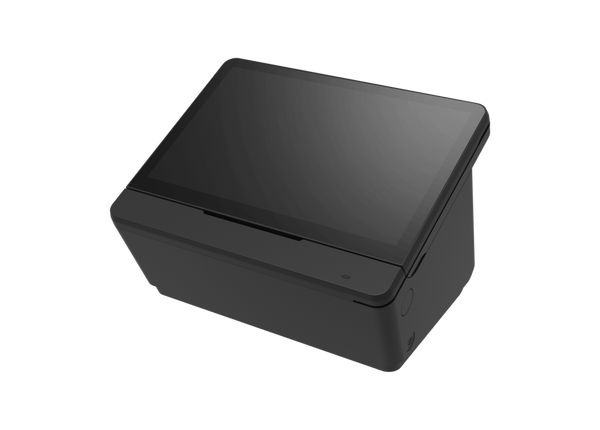

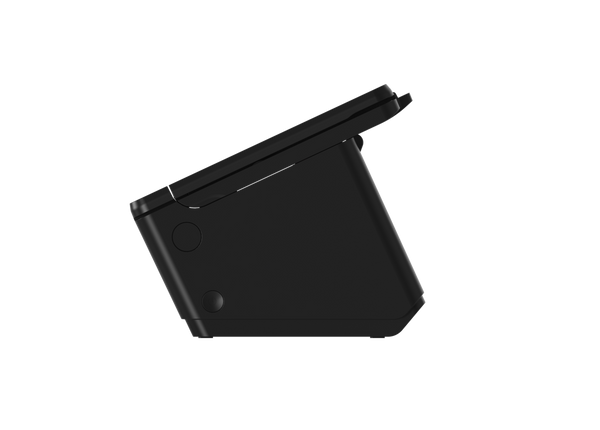

POSBANK Mint ALL-IN-ONE COMPACT POS J6412 10.1" Black Windows 10 with PECAN POS

MINT EL-1010

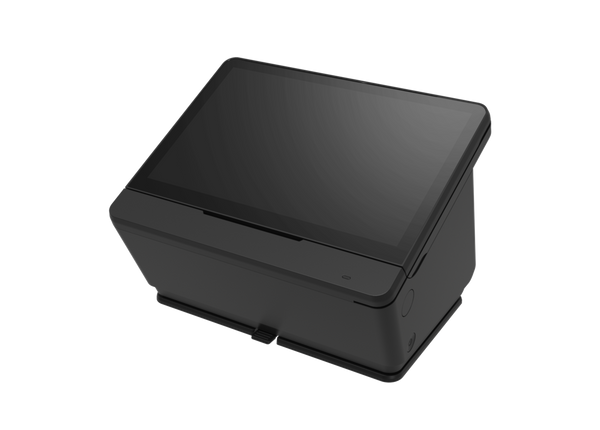

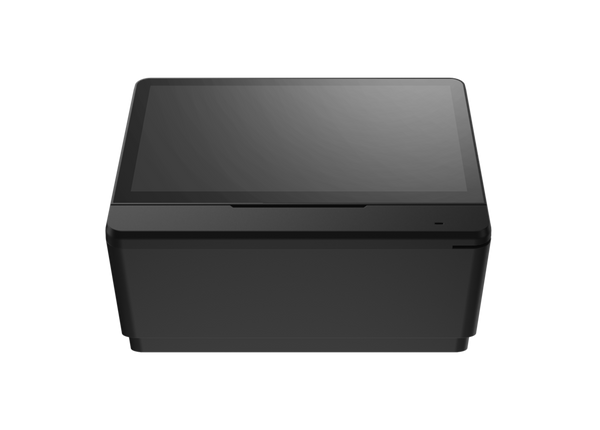

Mint is a compact and powerful all-in-one POS terminal that allows payment and receipt printing with a single terminal.

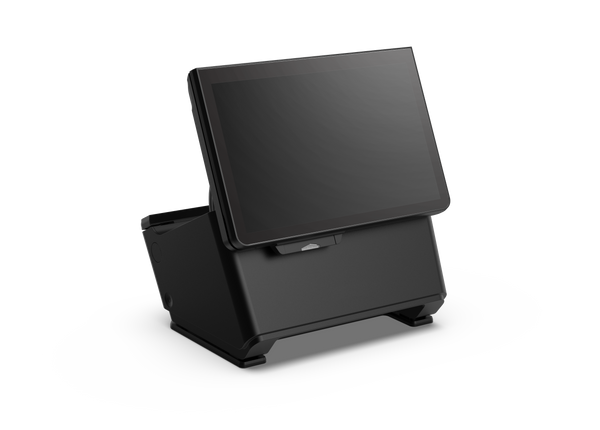

It features 10.1-inch screen display that can interchange directions for sign pad use with a simple tilt of a screen. Also, with an interface that includes various USB and serial ports, wide range of functions are possible.

with a tilting screen sign pad replacement
precise touch PCAP touch display
Ample I/O ports Easy system expansion
Jam-Free 3inch Auto cutter printer
10.1” Display
With tool-less design convenient maintenance
Retail and restaurant Optimized payment terminal

System

• Processors
  [MINT EL-1010]
  Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz


  Chipset
  [MINT EL-1010]
  Intel® Elkhart Lake

  -
• Memory
  Windows:
  4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 32GB)

  Storage
  Windows:
  1. Form Factor
  NVMe M.2 2242-D2-M (No capacity limit.)
  2. Mountable quantity: Up to 1 units can be installed.
  * FMINTory Default : NVMe M.2 2242 128GB x 1


• RAID
  -
• Operating Systems
  [MINT EL-1010]
  Windows 10 IoT Enterprise LTSC



• Software
  -
• Printer
  3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter, Built-in Type
• Audio
  HD Audio Codec

Display

• Type
  10.1" TFT LCD, LED Backlight
• Resolution
  1280 x 800
• Brightness
  400 cd/m²
• View Angle (U/D/R/L)
  -
• Touchscreen
  Projected Capacitive Touch

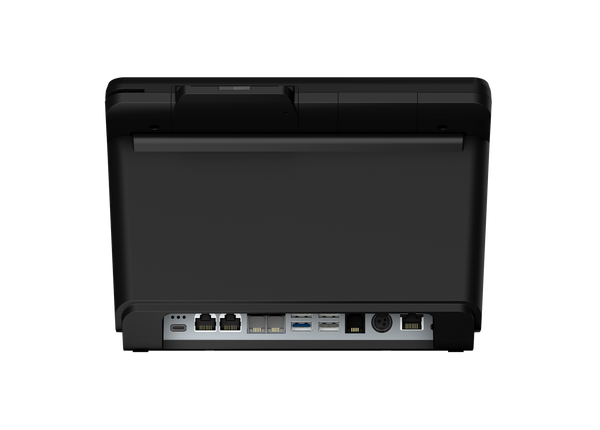

Interface

• USB
  External 5 (USB 2.0 x 3, USB 3.0 x 1, USB-C x 1)
  Internal 4 (USB 2.0 x 2, USB 2.0 x 2 (Reserved SCR/MSR, Option))
• PS/2
  -
• Serial
  External 4 (COM1, COM2 RJ-45, Full Signal)
  (COM3,COM4 RJ-12, Only Tx/Rx)
  Internal 3 (COM5, Reserved for Printer)
  (COM6, Reserved for SCR)
  (COM7, Reserved for NFC or VFD)
• CashDrawer Port
  1, RJ-12
• LAN
  Gigabit Ethernet x 1, RJ-45
• Audio
  -
• Power DC-IN
  3 Pin DIN Jack
• MSR
  -
• VGA
  -
• HDMI
  -
• SD Card Slot
  -
• Extension Slot
  -
• OTG
  Windows:
  -

  Android:
  USB C Port x 1

Power

Power Supply

Adapter 24V, 2.5A

Physical & Environmental

• Operating Temperature
  0 ℃ ~ 60 ℃ at 10% to 90% Humidity
• Storage Temperature
  -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
• Dimensions (W x D x H)
  244 x 200 x 172(mm), 9.6 x 8 x 6.8(in)
• Packing Dimensions (W x D x H)
  320 x 330 x 316(mm), 12.6 x 13 x 12.4(in)
• Net Weight
  2,420g, 5.3lbs
• Packing Weight
  4,200g, 9.26lbs
• Certification
  CE, FCC, KC
• Color
  Black
