POSBANK Mint ALL-IN-ONE COMPACT POS J6412 10.1" White Windows 10

POS OF AMERICA

Sale price $799.00 Regular price $899.00

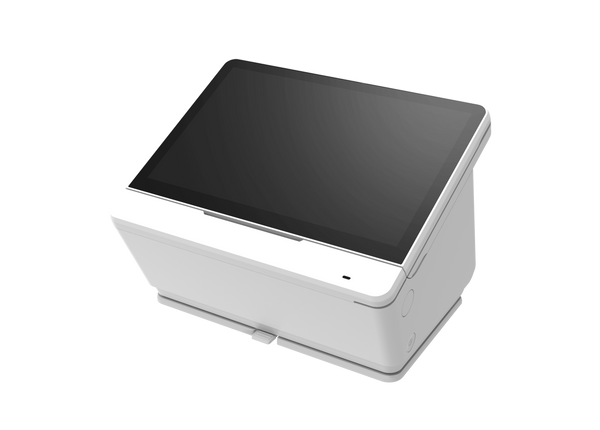

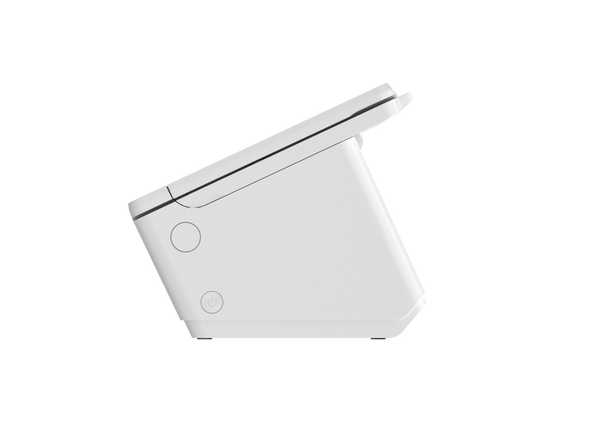

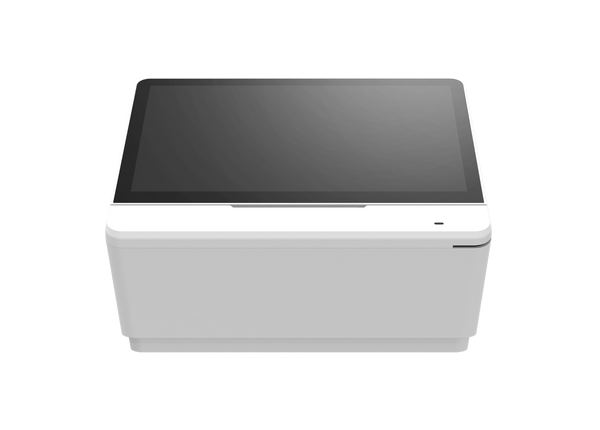

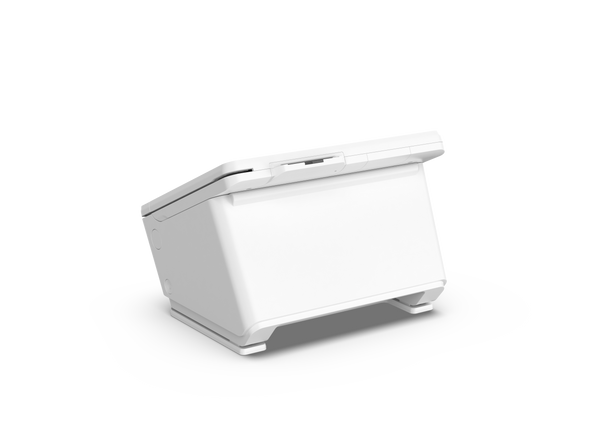

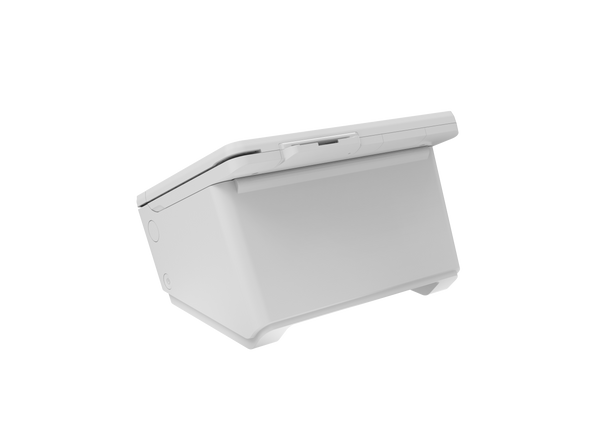

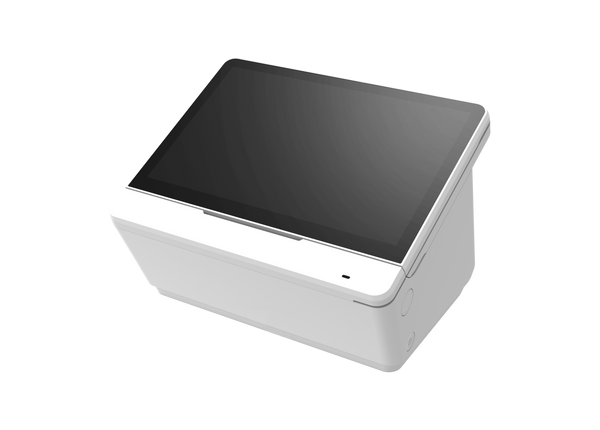

POSBANK Mint ALL-IN-ONE COMPACT POS J6412 10.1" White Windows 10

MINT EL-1010

Mint is a compact and powerful all-in-one POS terminal that allows payment and receipt printing with a single terminal.

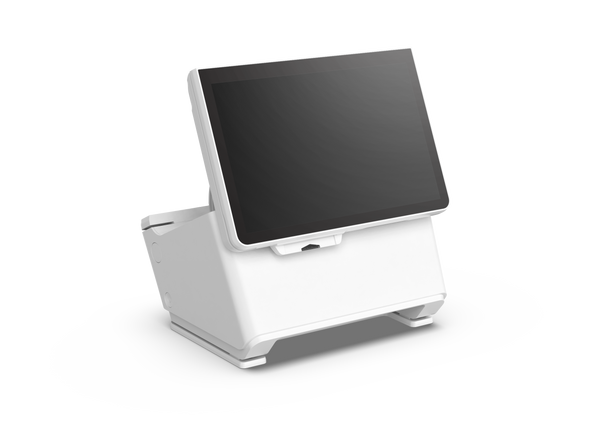

It features 10.1-inch screen display that can interchange directions for sign pad use with a simple tilt of a screen. Also, with an interface that includes various USB and serial ports, wide range of functions are possible.

with a tilting screen sign pad replacement
precise touch PCAP touch display
Ample I/O ports Easy system expansion
Jam-Free 3inch Auto cutter printer
10.1” Display
With tool-less design convenient maintenance
Retail and restaurant Optimized payment terminal

System
  • Processors
    [MINT EL-1010]
    Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz

    Chipset
    [MINT EL-1010]
    Intel® Elkhart Lake

    -
  • Memory
    Windows:
    4GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max. 32GB)

    Storage
    Windows:
    1. Form Factor
    NVMe M.2 2242-D2-M (No capacity limit.)
    2. Mountable quantity: Up to 1 units can be installed.
    * FMINTory Default : NVMe M.2 2242 128GB x 1

  • RAID
    -
  • Operating Systems
    [MINT EL-1010]
    Windows 10 IoT Enterprise LTSC


  • Software
    -
  • Printer
    3" Jam-Free Thermal, Max. 250mm/s, Auto Cutter, Built-in Type
  • Audio
    HD Audio Codec
Display
  • Type
    10.1" TFT LCD, LED Backlight
  • Resolution
    1280 x 800
  • Brightness
    400 cd/m²
  • View Angle (U/D/R/L)
    -
  • Touchscreen
    Projected Capacitive Touch

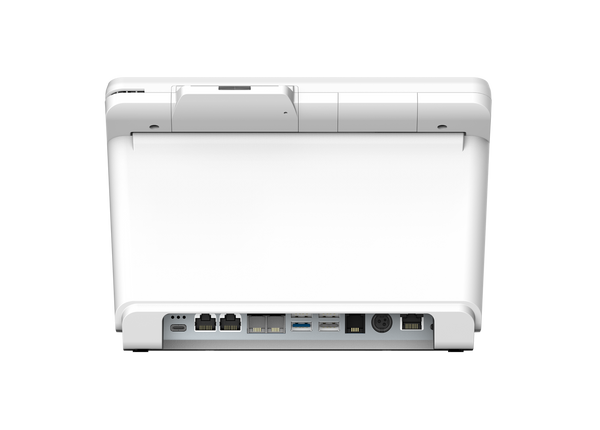

Interface
  • USB
    External 5 (USB 2.0 x 3, USB 3.0 x 1, USB-C x 1)
    Internal 4 (USB 2.0 x 2, USB 2.0 x 2 (Reserved SCR/MSR, Option))
  • PS/2
    -
  • Serial
    External 4 (COM1, COM2 RJ-45, Full Signal)
    (COM3,COM4 RJ-12, Only Tx/Rx)
    Internal 3 (COM5, Reserved for Printer)
    (COM6, Reserved for SCR)
    (COM7, Reserved for NFC or VFD)
  • CashDrawer Port
    1, RJ-12
  • LAN
    Gigabit Ethernet x 1, RJ-45
  • Audio
    -
  • Power DC-IN
    3 Pin DIN Jack
  • MSR
    -
  • VGA
    -
  • HDMI
    -
  • SD Card Slot
    -
  • Extension Slot
    -
  • OTG
    Windows:
    -

    Android:
    USB C Port x 1
Power
Power Supply
Adapter 24V, 2.5A
Physical & Environmental
  • Operating Temperature
    0 ℃ ~ 60 ℃ at 10% to 90% Humidity
  • Storage Temperature
    -20 ℃ ~ 80 ℃ at 10% to 90% Humidity
  • Dimensions (W x D x H)
    244 x 200 x 172(mm), 9.6 x 8 x 6.8(in)
  • Packing Dimensions (W x D x H)
    320 x 330 x 316(mm), 12.6 x 13 x 12.4(in)
  • Net Weight
    2,420g, 5.3lbs
  • Packing Weight
    4,200g, 9.26lbs
  • Certification
    CE, FCC, KC
  • Color
    White
